The Best Pulse Generator 89 Alfa Romeo

Parameters:
1. Working voltage: DC3.3 ~ 30V;
2. Frequency range: 1Hz ~ 150KHz;
3. Frequency accuracy: the accuracy in each range is about 2%;
4. Signal load capacity: the output current can be about 5 ~ 30ma;
5. Output amplitude: PWM amplitude equal to the supply voltage;
6. Ambient temperature: -20 ~ +70 ℃.

Application:
1. Used as a square wave signal generator, generate the square wave signal for experimental development and use;
2. Used to generate a square wave signal that controls the motor driver;
3. Generate adjustable pulse for MCU use;
4. Generate adjustable pulse, control the relevant circuit (PWM dimming speed and other applications).

Package Includes:
1* PWM Signal Generator Module

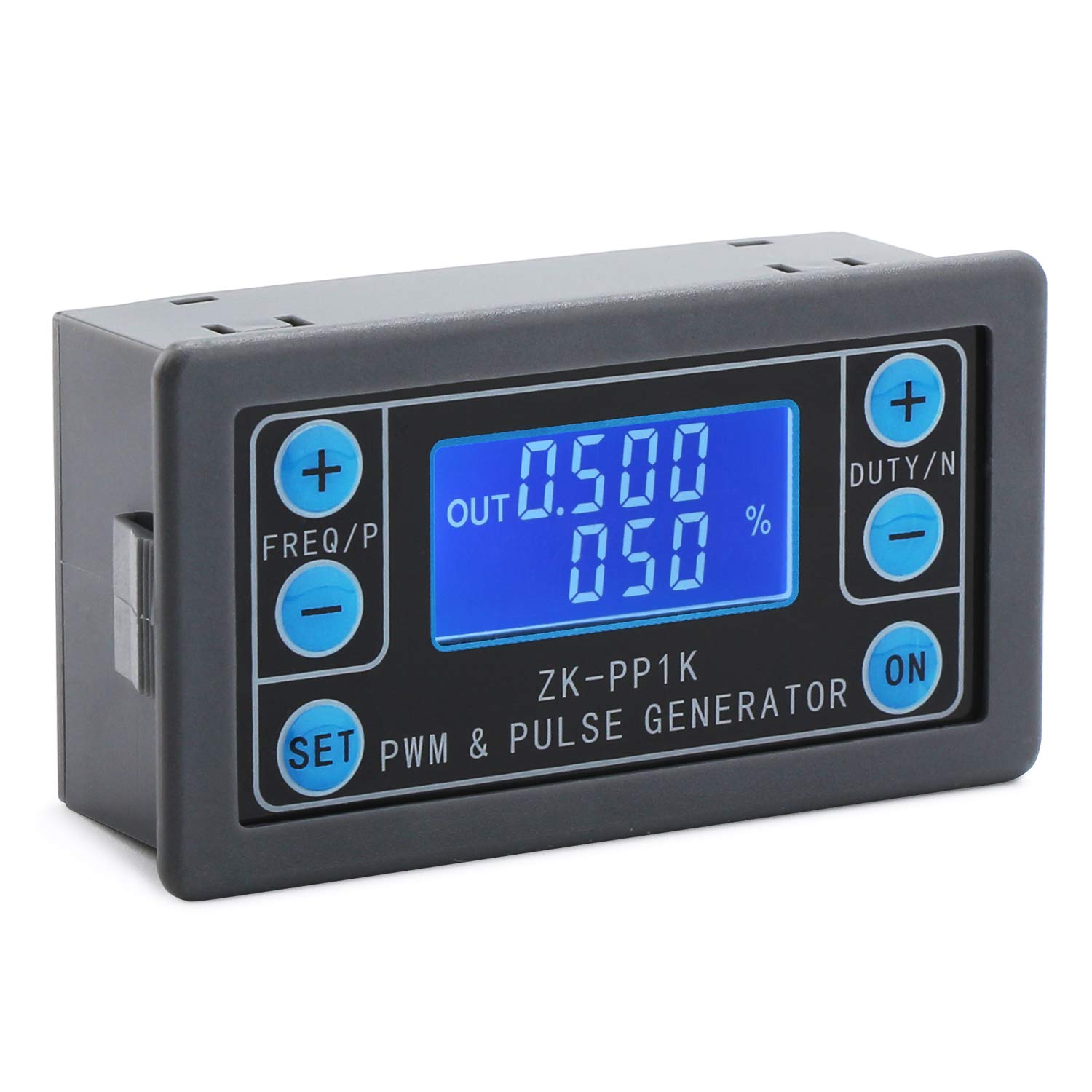

DROK Variable PWM & Pulse Function Signal Generator

Parameter:
Working Voltage: DC 3.3-30V, with anti-reverse protection.
Frequency range: 1Hz~150KHz, accuracy about 1%.
Duty cycle range: 0-100%, 1% stepping.
Number of pulses: 1-9999, or infinite (display ‘—-‘stands for infinity).
Delay output time: 0.000s-9999s, the minimum can be set 1ms.
positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms.
signal loading capacity:less than 30mA.
Output signal amplitude: amplitude is equal to the supply voltage.
Size:79mm*43mm*30mm

Dual Modes:
PWM mode – frequency (continuous), duty cycle. Note that the number of pulses cannot be set in this mode, and the pulse is always sent;
PULSE mode – positive pulse width time, negative pulse width time, delay start time, and number of pulses are adjustable.

Package Includes:
1x PWM Pulse Generator

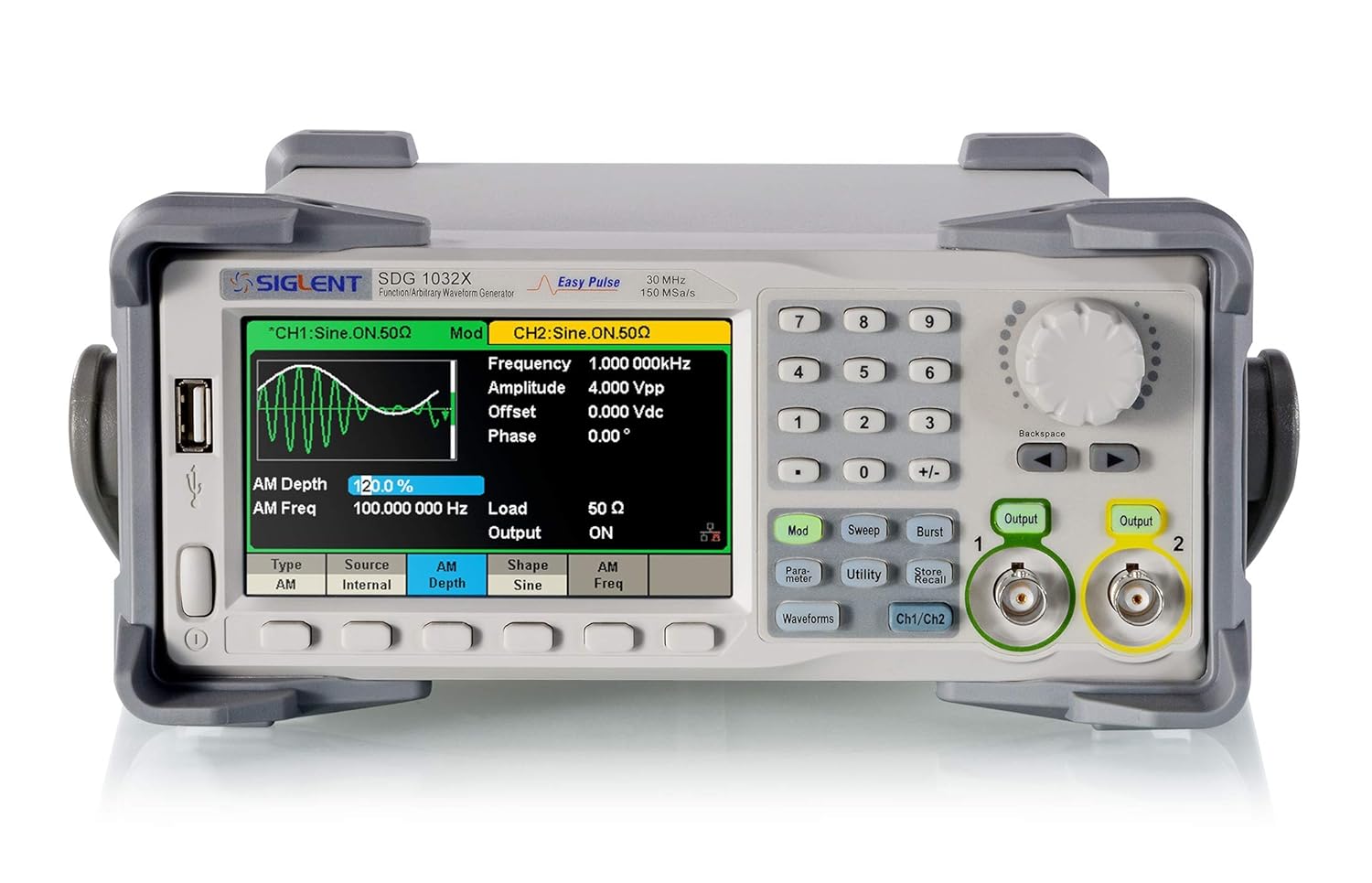

The SIGLENT SDG1032X is siglent’s latest addition to an already powerful line of arb/function generators. With the ability to offset the phase between CH1 and CH2, numerous modulation types, a harmonics generation mode, this 30 MHz generator can generate square waves to 30 MHz. A feature not found in most other generators in this price Class.

Advantage:
High frequency precision up to 10-6 orders of magnitude.
Full range of 0.01μHz frequency resolution.
Minimum amplitude resolution can be up to 1mV.
Duty cycle of each channel can be adjusted separately. Precision can be 0.1%.

Frequency Characteristic:
Normal Modes & Square & Triangle Wave: 0~15MHz
Sawtooth & Arbitrary & TTL Digital Signal Wave: 0~6MHz
Square rise time: ≤30nS
Frequency accuracy: ±20ppm×10-6
Frequency stability: ±1ppm×10-6/3h

Waveform Characteristic:
Waveform: Sine, Square, Triangle, Pulse (duty-cycle correction), Partia Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 kinds user defined waveform.

Output Characteristics:
Amplitude resolution: 1mV
Amplitude stability: ±0.5%/5 h
Amplitude flatness: ±5%(<10MHz); ±10%(>10MHz)

Frequency Meter Function:
Frequency measurement range: 1Hz~100MHz
Measurement accuracy: Gate time continuously adjusted between 0.01S~10s

Counter Function:
Counting region: 0-4294967295
Coupled mode: 2kinds Coupling modes, DC and AC
Counting mode: Manual operation

Package Included:
1 x DDS Signal Generator
1 x USB Cable
1 x Power Adapter
2 x Q9 Cable
1 x CD

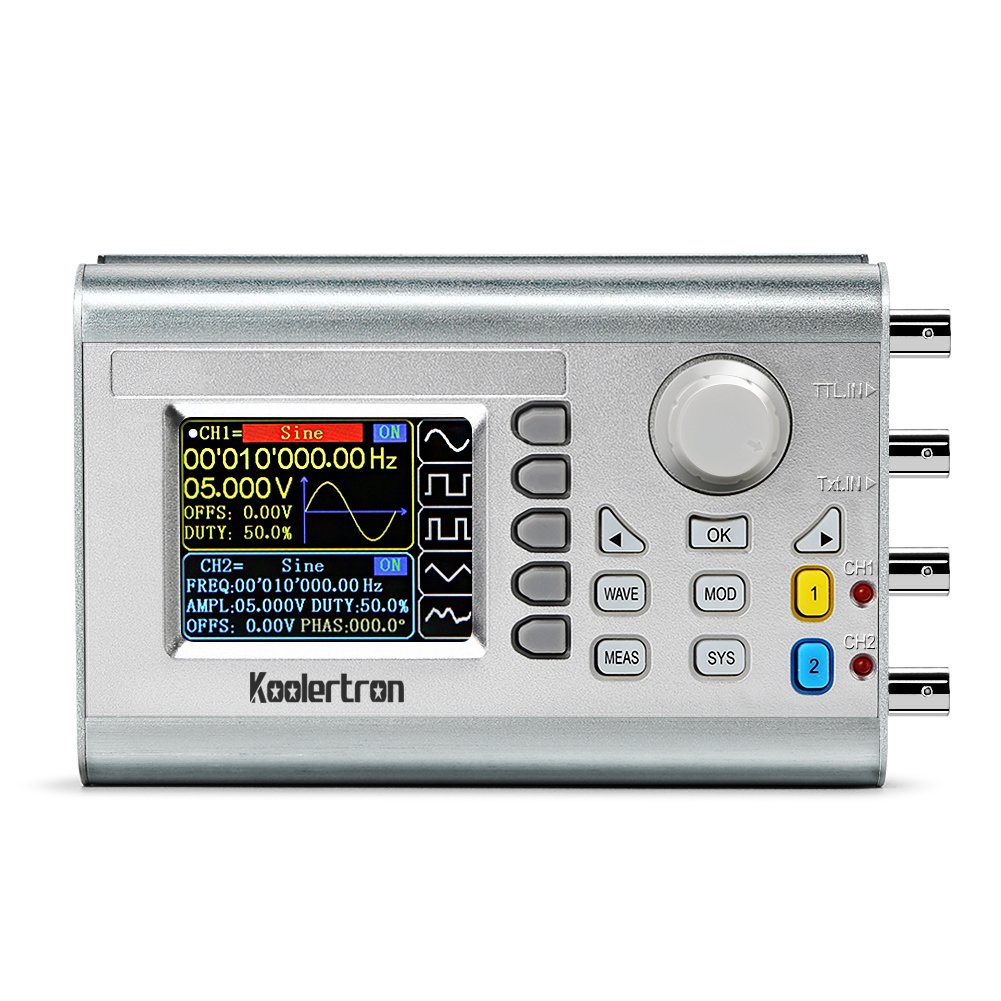

Advantage:
High frequency precision up to 10-6 orders of magnitude.
Full range of 0.01μHz frequency resolution.
Minimum amplitude resolution can be up to 1mV.
Amplitude range is 0Vpp~20Vpp.
Duty cycle of each channel can be adjusted separately. Precision can be 0.1%.

Frequency Characteristic:
Sine & Square & Triangle Wave: 0~15MHz
Pulse & Arbitrary & TTL Digital Signal Wave: 0~6MHz
Square rise time: ≤25nS
Pulse width adjustment range: 150nS-4000S
With pulse trains burst output function, allow the unit output 1~1048575 arbitrary pulse trains.
Frequency accuracy: ±20ppm
Frequency stability: ±1ppm/3h

Waveform Characteristic:
Waveform: Sine, Square, Triangle, Pulse (duty-cycle correction,Pulse width and cycle time adjustable), Partial Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, sine pulse, Lorentz Pulse, and 60 kinds user defined waveform.

Phase characteristic:
Phase adjusting range: 0~359.9°
Phase resolution: 0.1°

TTL/COMS Output:
Low level: <0.3V
High level: 1V~10V
Level rise/fall time: ≤20ns

Package Included:
1 x DDS Signal Generator
1 x USB Cable
1 x Power Adapter
2 x Q9 Cable
1 x CD

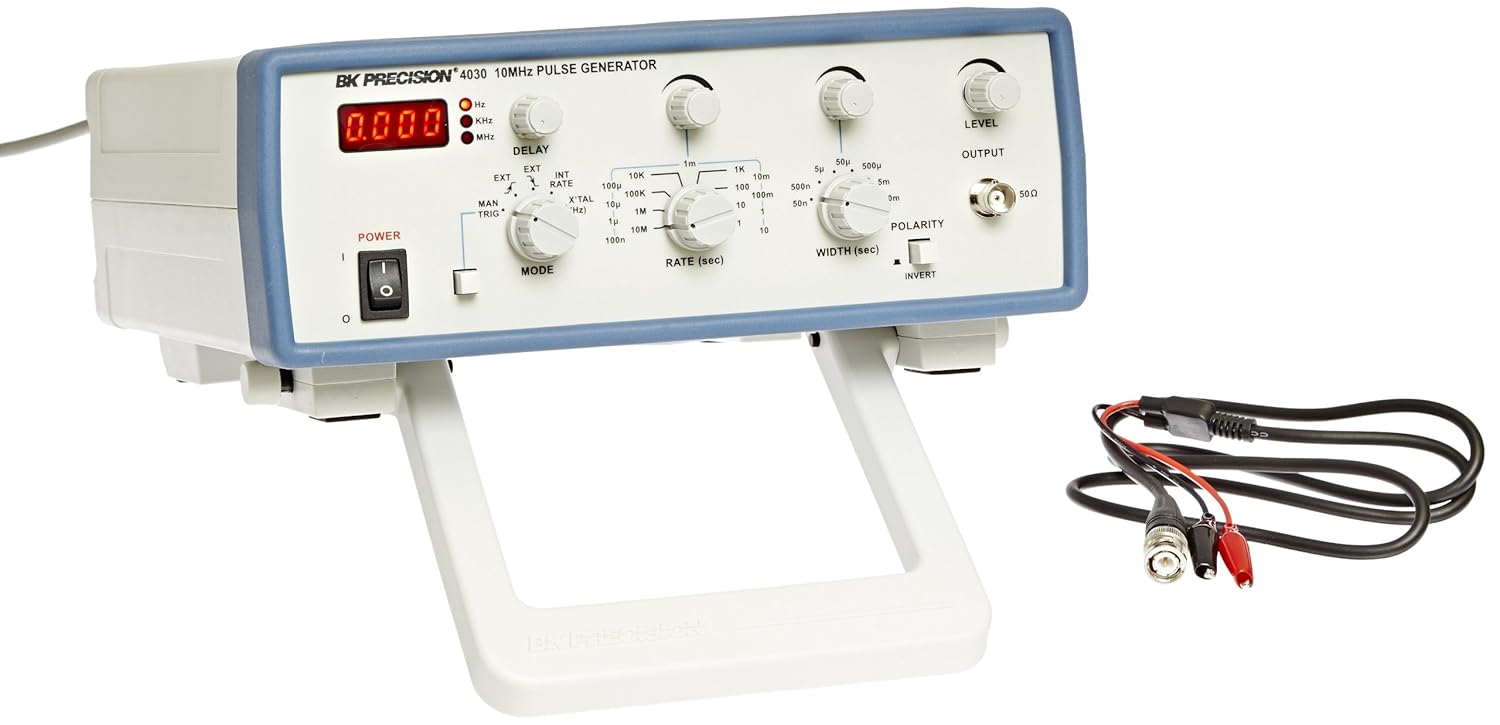

The BK Precision Model 4030 is a versatile signal source which combines four functions into one unit–waveform generation, pulse generation (through variable symmetry), frequency sweep operation, and triggered operation. The 4030 offers low rise and fall time pulsed signals up to 10MHz to meet many test and measurement applications.

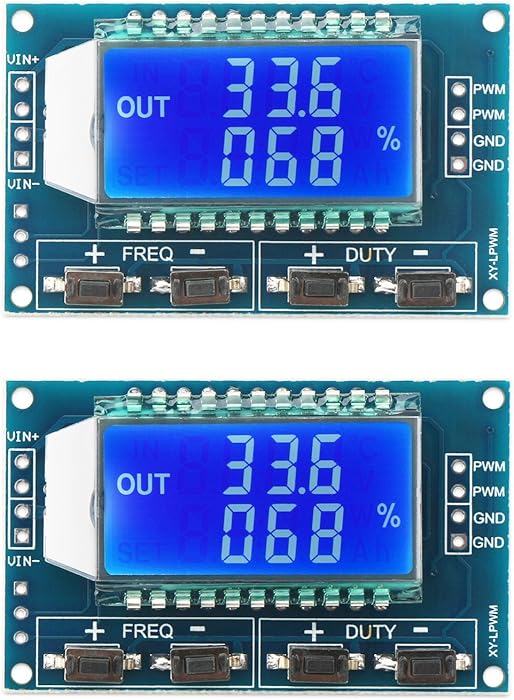

Parameter:
1. Working voltage: DC 3.3v~30v
2. Frequency range: 1Hz~150kHz (divided into 4 ranges);
3. Frequency precision: 2% of each range;
4. Signal load capacity: output current is about 5-30mA;
5. Output Amplitude: PWM amplitude equal to the input voltage value
6. Environment Temperature Range: -20~+70℃
7. Duty cycle range: 0-100%.

Application:
1. As square wave signal generator for experimental development;
2. As square wave signal generator for motor driver;
3. As adjustable pulse generator for MCU;
4. As pulse generator, control related circuits (PWM dimming, speed regulating).

Setting Parameters:
There are 4 independent buttons on the module for setting the frequency value and the duty cycle value.
Supports short press (increase or decrease one unit by one unit) and long press (fast increase or decrease).
All setting parameters will be saved when powered off to achieve data guaranteed.

Frequency Display Instruction:
The frequency is divided into 4 ranges and switched automatically.
1. XXX (without decimal point): minimum unit is 1Hz, value range is 1Hz~999Hz.
2. X.XX (the decimal point is in the hundred digit): minimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz.
3. XX.X (the decimal point is in the ten digit): minimum unit is 0.1kHz; value range is 10.0kHz~99.9kHz.
4. X.X.X (full decimal point): the minimum unit is 1kHz; the value range is 1kHz~150kHz
e.g. Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz;
                      displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHz

Package Included:
1x Signal Generator

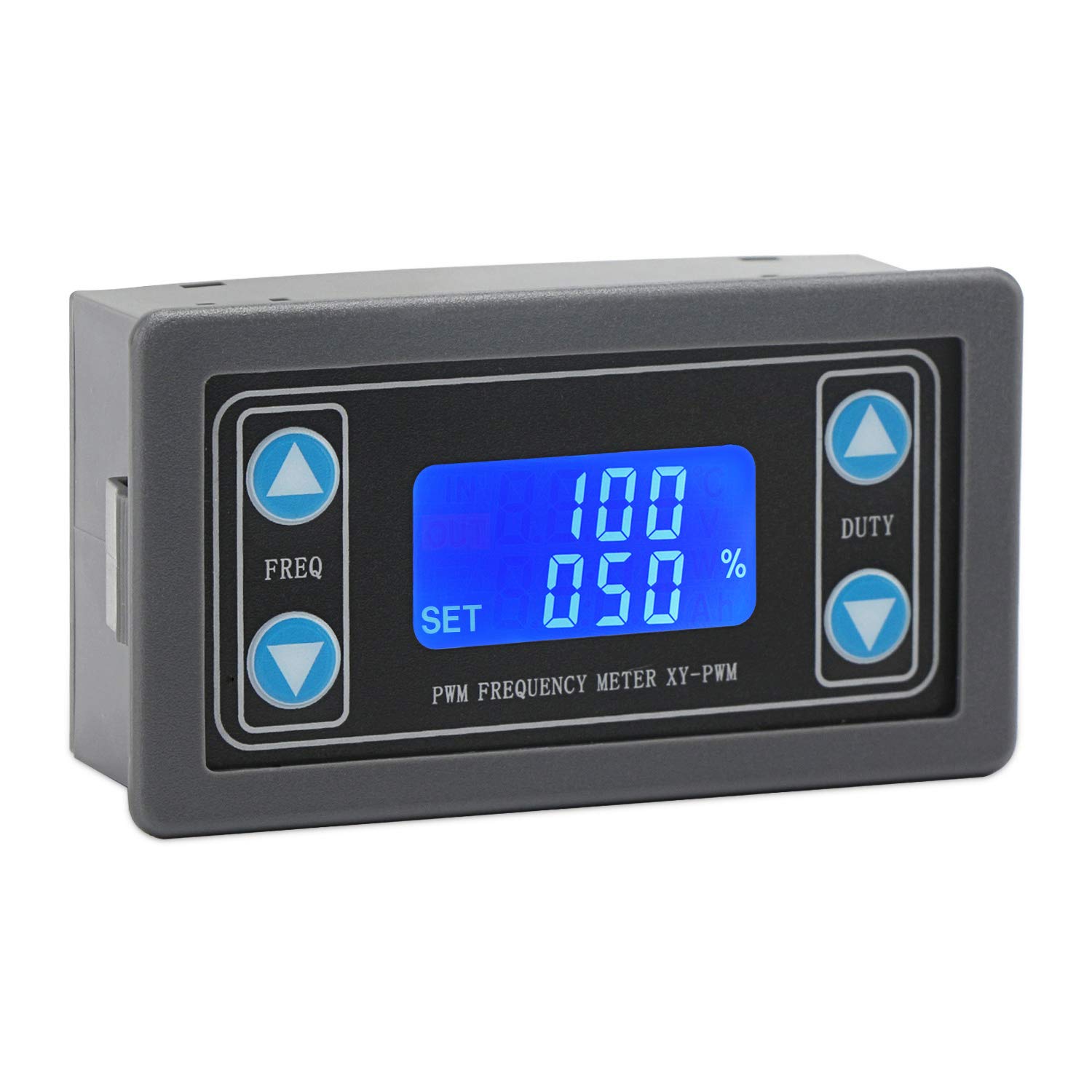

DROK Function Generator

Parameter:
Working voltage: DC 3.3V-30V
Frequency range: normal mode 1Hz-150kHz; accurate mode 1Hz-15kHz
Frequency accuracy: 2% in each range
Signal load capacity: output current about 5-30mA
Output amplitude: PWM amplitude equals to input voltage value
Working temperature: -20℃~+70℃
Duty cycle range: 0-100%

Features:
With 2 modes.
Operated by code potentiometer.
With lock function to avoid misoperation.
Duty cycle upper and lower bounds is adjustable.

2 Modes:
Normal mode:
Frequency range 1Hz-150kHz, duty cycle 000-100%, duty cycle step 1%
Accurate mode:
Frequency range 1Hz-15kHz, duty cycle 00.0-100%, duty cycle step 0.1%

Application:
As square wave signal generator for experimental development;
As square wave signal generator for motor driver;
As adjustable pulse generator for MCU;
As pulse generator, control related circuits (PWM dimming, speed regulating).

Frequency Display Instruction:
The frequency is divided into 4 ranges and switched automatically.
1. XXX: minimum unit 1Hz, value range 1Hz~999Hz.
2. X.XX: minimum unit 0.01kHz, value range 1.00kHz~9.99kHz.
3. XX.X: minimum unit 0.1kHz; value range 10.0kHz~99.9kHz.
4. X.X.X: minimum unit 1kHz; value range 1kHz~150kHz.
e.g. Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz;
                      displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHz

Package Included:
1x Function Signal Generator
